Dimensions: 360mm W x 320mm D x 160mm H x 460mm Handle Radius
Max working Capacity*
25mm x 5mm (flat strip)
10mm (round bar)
10mm (square bar)
Max scroll size*
210mm
Note also - The Mk3/3 and Mk3/4 Scroll Formers also have interchangeable segments to allow different scrolls shapes to be made.
The maximum scroll size quoted is approximate due to the varying temper (spring) of steel.
All tools on this page are supplied complete with operating instructions, spare parts diagram, scroll former template sheets and magnetic markers for repeatable scrolls.
Please note: The maximum working capacity is for Hot Rolled Mild Steel Bar and Annealed Bright Mild Steel Bar. Working beyond these limits or with material of greater hardness may reduce the operational life of the machines.
Operations and Features
- Creates larger scrolls and has greater working capacity than Mk 2/3 Scroll Former
- Easy To Use
- Also available with Optional Extra Tube Bending Components (See MC022X)

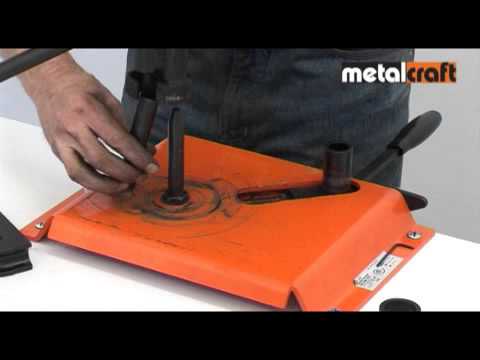

Open out segments and ensure pressure roller is set towards centre of scroll former before gripping steel in centre of tool with locking bar arrangement.
Rotate handles of capstan to draw steel into the former as segments close up to create the scroll shape.
The maximum scroll size quoted is approximate due to the varying temper (spring) of steel.
All tools on this page are supplied complete with operating instructions, spare parts diagram, scroll former template sheets and magnetic markers for repeatable scrolls.
Our Mk 3/3 scroll bender is the mid range version of our very popular capstan operated metal scrollers and complements our Master range of Metalcraft tools with its ability to work with steel bars up to 25mm x 5mm (or 10mm square or round) solid bar.
As with all of our capstan type scroll bending tools, the material is gripped in the central segment and rotation of the three handles draws the steel bar into the interlocking segments to form a scroll upto a maximum size of 210mm across depending how far the handles are rotated. The outer segments can also be interchanged to create different steel scroll shapes.
This very reasonably priced tool produces consistent and great looking scrolls to incorporate into your wrought ironwork or general metalworking projects.
Dimensions: 60mm W x 320mm D x 160mm H x 460mm Handle Radius
Max working Capacity*
25mm x 5mm (flat strip)
10mm (round bar)
10mm (square bar)
Max scroll size*
210mm
