This version of our Mk 2/3 scroll maker has all the same scrolling capability as our MC029 Mk2/3 Scroll Forming tool but is also supplied with a couple of special tube bending components as an optional extra.

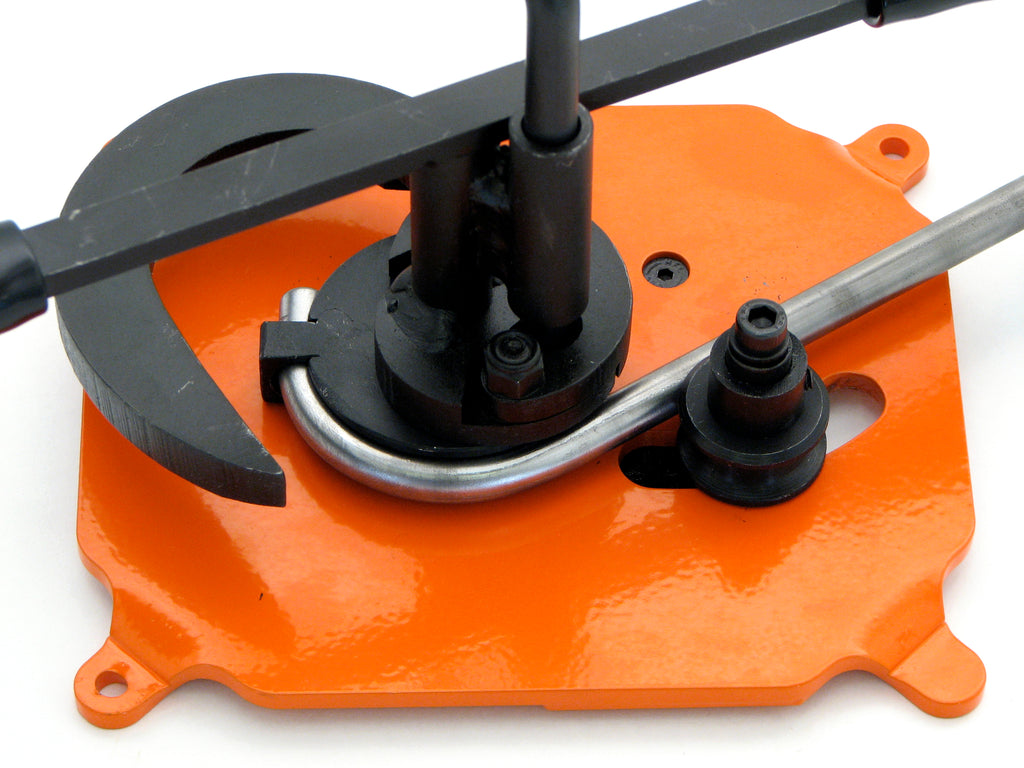

As well as a special pressure guide roller, there is a larger tube former which when fitted to the machine converts your wrought iron scroll bender into a fixed radius tube bender. This larger tube former is cleverly designed to fit underneath and be driven by the scrollers handle capstan and centre segment.
Check out the video clip on this page to see how this increases the versatility of your Mk2/3 scroll former for a very small additional cost.
Dimensions: 150mm W x 230mm D x 120mm H x 210mm Handle radius
Max Working Capacity
20mm x 3mm (scrolls)
Max Scroll Size
127mm
Tube Bending Capacity
Max Tube dimensions 10mm Outer Dia with rcommended wall thickness 1.2mm
Inner Diameter of tube former bend is 49.7mm
* All sizes are approximate and in mm unless stated otherwise
The maximum scroll size quoted is approximate due to the varying temper (spring) of steel.
All tools on this page are supplied complete with operating instructions, spare parts diagram, scroll former template sheets and magnetic markers for repeatable scrolls.
Please note: The maximum working capacity is for Hot Rolled Mild Steel Bar and Annealed Bright Mild Steel Bar. Working beyond these limits or with material of greater hardness may reduce the operational life of the machines.
Operations and Features
- Still operates exactly as MC029 Mk 2/3 Scroll Former but with additional capability
- Easy To Use
Tool still operates as the MC029 Mk 2/3 Scroll Former but this package includes Tube Forming Components which fit on the pressure roller and underneath the segments.
Once end of tube fed into tube bending component, rotate handles to create bend in tube up to 180 degrees.
