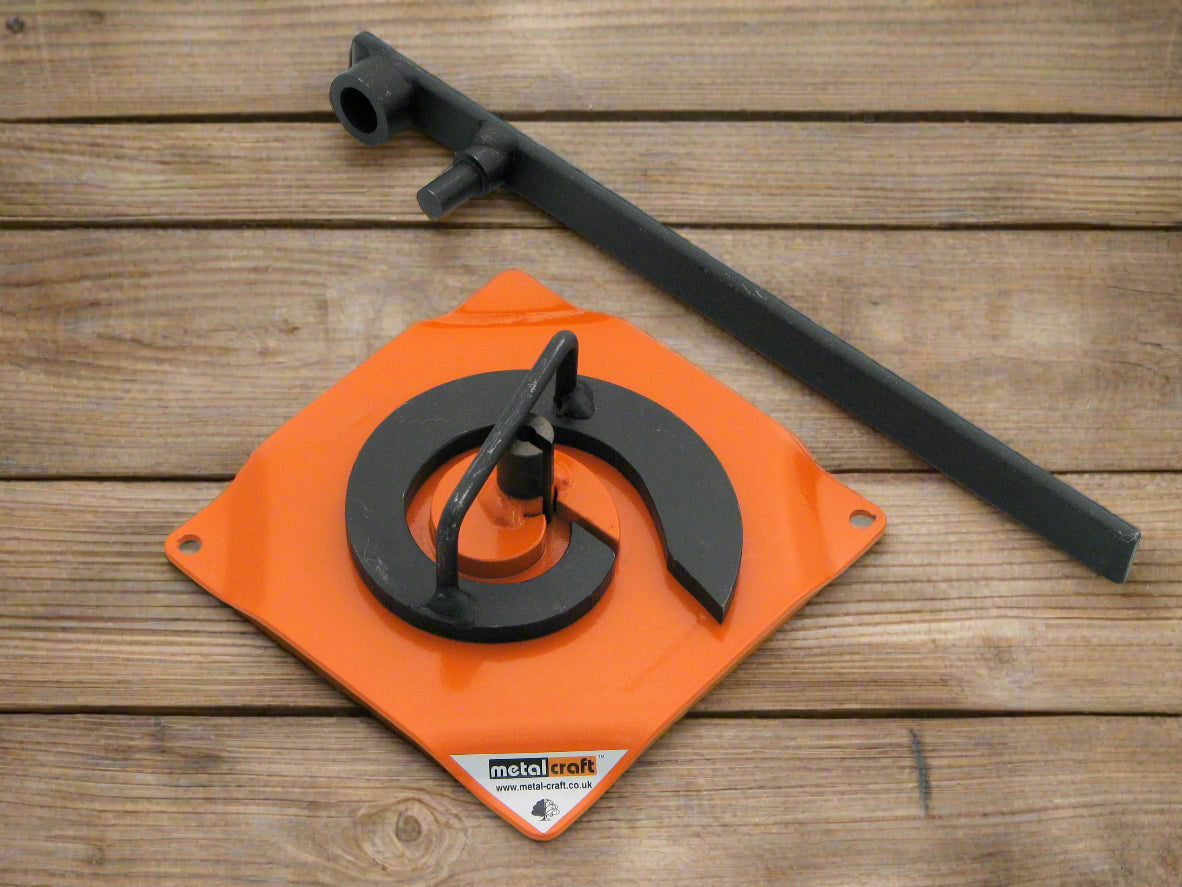

The Mk 2/2H Scrolling Tool is a bigger version of our entry level MC017 Mk 1/2 scroll bender. It produces bigger scrolls up to 127mm across and can work with all sizes of steel up to 20mm x 3mm. Again this works as a hand drawn scroll bender jig, where the end of the steel bar is gripped in the centre and pulled round the inner segment by hand. Larger scrolls are made by dropping in place the larger outer segment.
The tool is also supplied with a special starting lever as and aid to help form the initial part of a scroll when using using bigger steel sizes. It produces flat and consistent wrought iron effect scrolls.
Dimensions: 150mm W x 150mm D x 45mm H
Max working Capacity*
20mm x 3mm
Max scroll size*
5" (127mm)
* All sizes are approximate and in mm unless stated otherwise
The maximum scroll size quoted is approximate due to the varying temper (spring) of steel.
All tools on this page are supplied complete with operating instructions, spare parts diagram, scroll former template sheets and magnetic markers for repeatable scrolls.
Please note: The maximum working capacity is for Hot Rolled Mild Steel Bar and Annealed Bright Mild Steel Bar. Working beyond these limits or with material of greater hardness may reduce the operational life of the machines.
Operations and Features
- Easy to use
- Produces flat and consistent scrolls
- No pre-heating of metal required
- Ideal entry level (low cost) scroll formers
- Ensure you have ample work space around the tool to wrap longer lengths
Grip steel in centre of scroll former and by hand, pull it around the inner fixed segment to make a smaller scroll. For larger sizes of steel, you may find the Starting Lever supplied, helpful in providing the extra effort required to ensure a nice tight inital bend to the scroll.
Drop-in outer segment to make a larger scroll.
